Previously in the collection · 1983 model
Koga-Miyata
Gentsracer-Aero

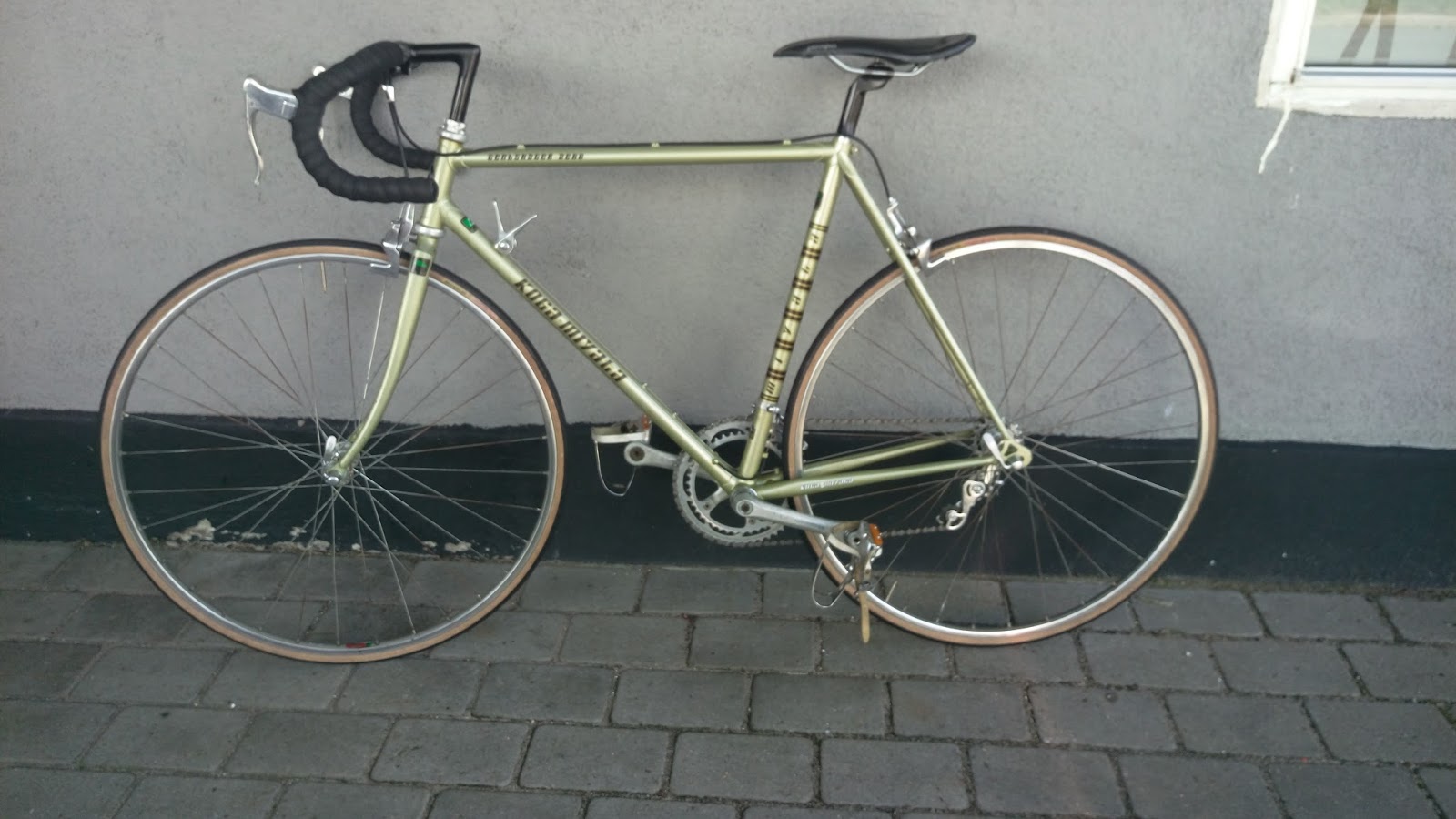

A Dutch-Japanese steel bicycle built around Shimano’s brief attempt to make almost every component more aerodynamic.
Everything had to pass through the air

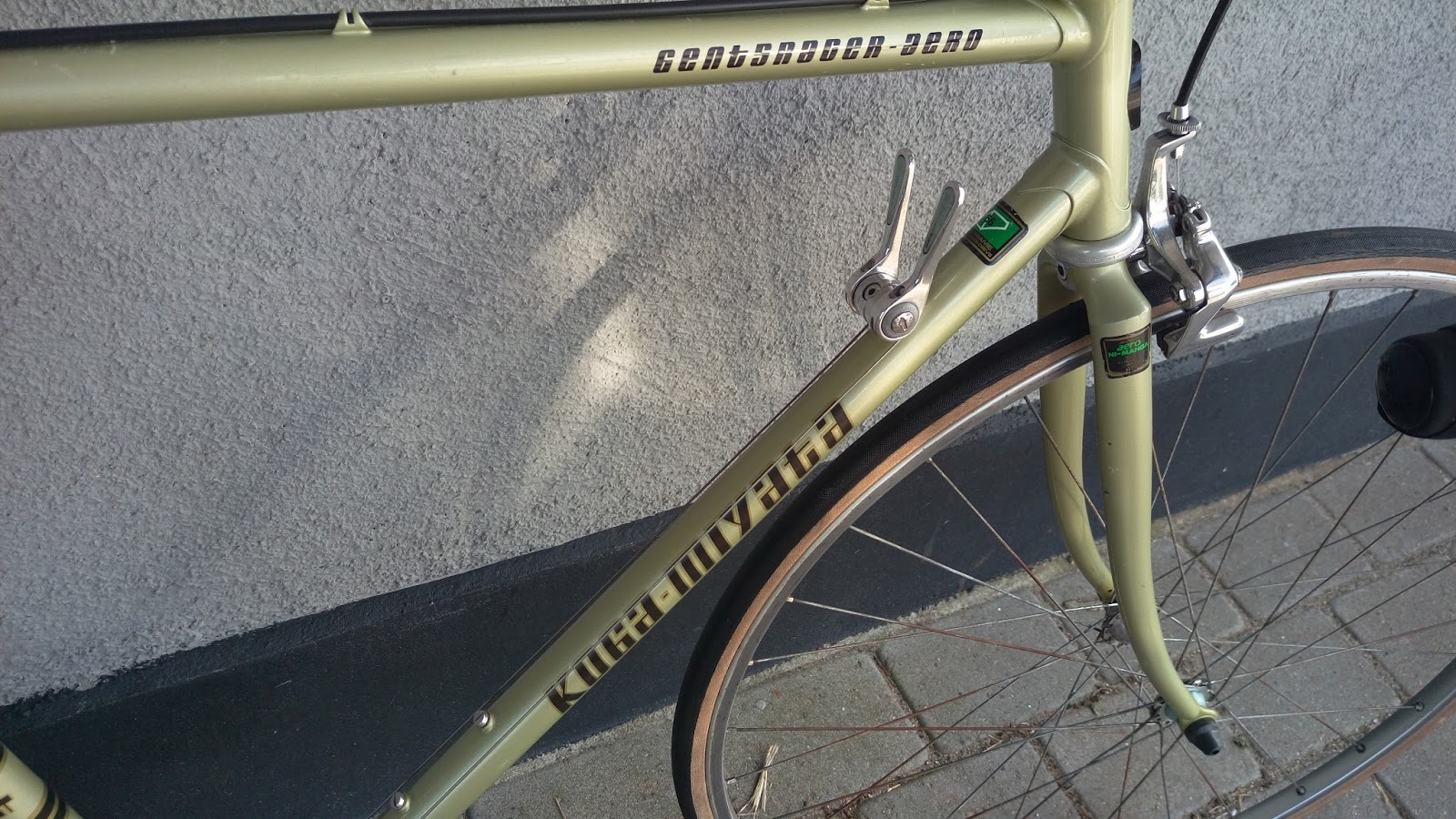

The gear levers sit together on top of the down tube. Brakes, hubs, pedals and chainset follow the same idea. Whether it transformed an ordinary Sunday ride is debatable; Shimano had certainly been thorough.
The catalogue corrects the date
1983 — perhaps purchased in 1984
The bicycle was previously described as a 1984 model. Koga-Miyata’s catalogues suggest otherwise.
The 1983 catalogue lists the Gentsracer-Aero GR-A in G-61 silver-green metallic. Its photograph, graphics, frame materials and Shimano 600 AX equipment match this bicycle. In 1984 the Aero name had disappeared; the Gentsracer GR had different paint and Shimano New 600 EX.
The safest description is a 1983 model, though it may have been sold or first used in 1984. Without the frame number, the date cannot be narrowed further.
Dutch name, Japanese frame
Tange and Miyata beneath the paint
Andries Gaastra founded Koga in 1974 after working at Batavus. The name combined the opening letters of his wife Marion Kowallik’s surname and his own.
Koga handled development, specification and assembly in the Netherlands; Miyata made the frames in Japan. This bicycle uses double-butted Tange Champion No. 2 chromoly main tubes. The catalogue identifies the stays and fork as Miyata Hi-Manga special steel.
Double-butted tubes are thicker at the joints and thinner in the middle, saving weight where equal wall thickness is unnecessary.
Shimano 600 AX
Aerodynamics down to the pedal
Shimano introduced 600 AX around 1980–81 beneath Dura-Ace AX in its Aerodynamic System Components programme.

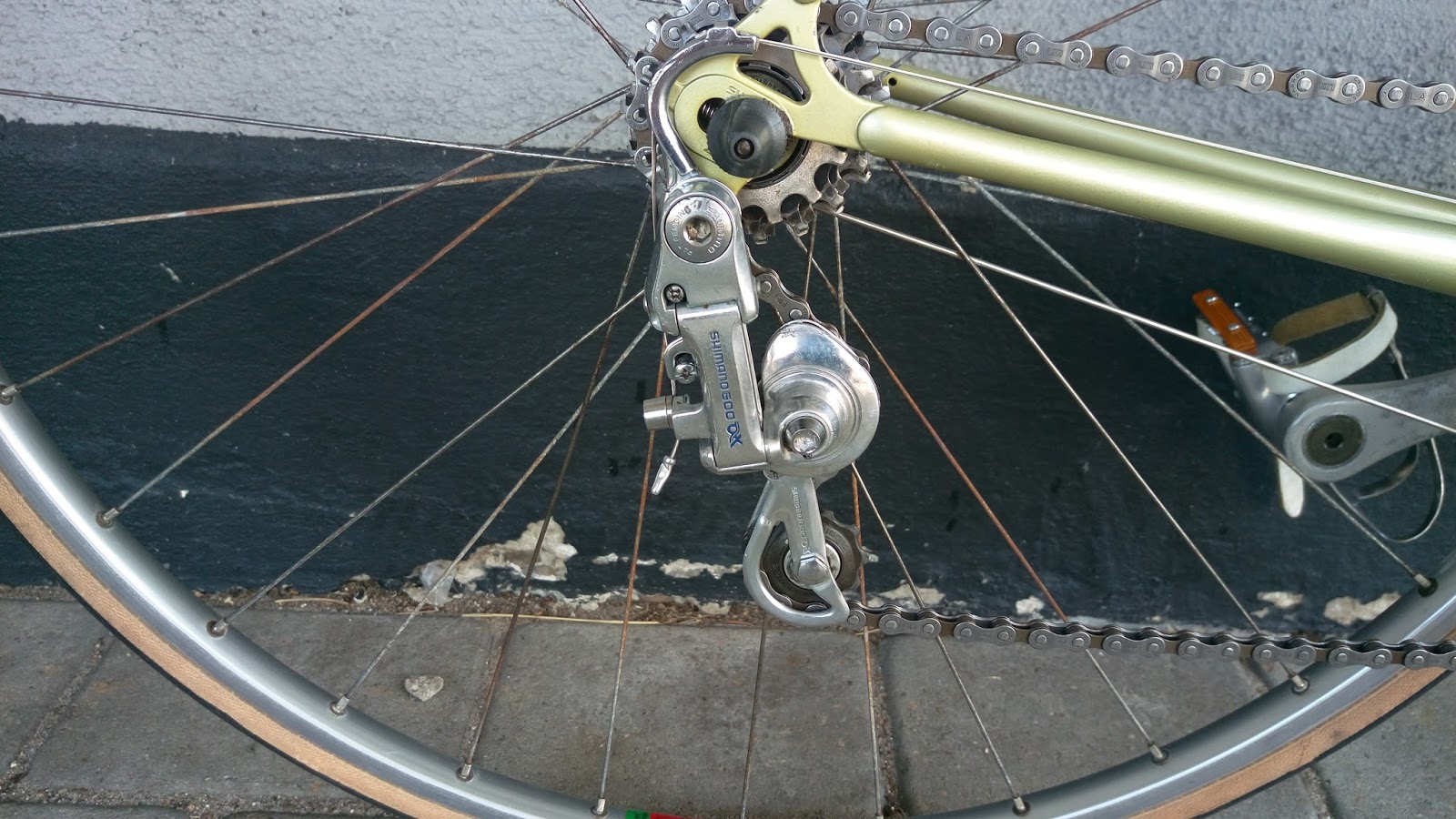

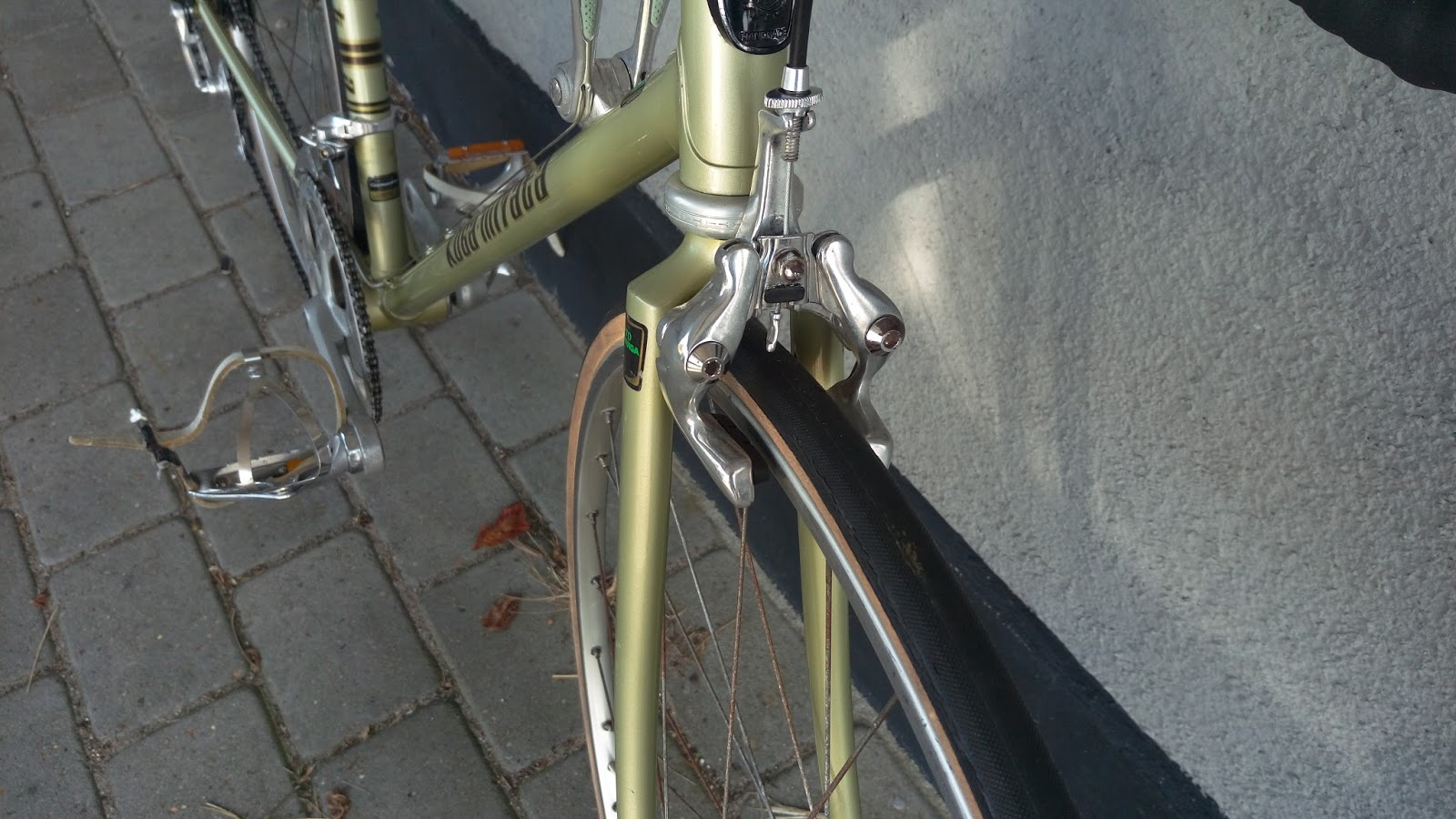

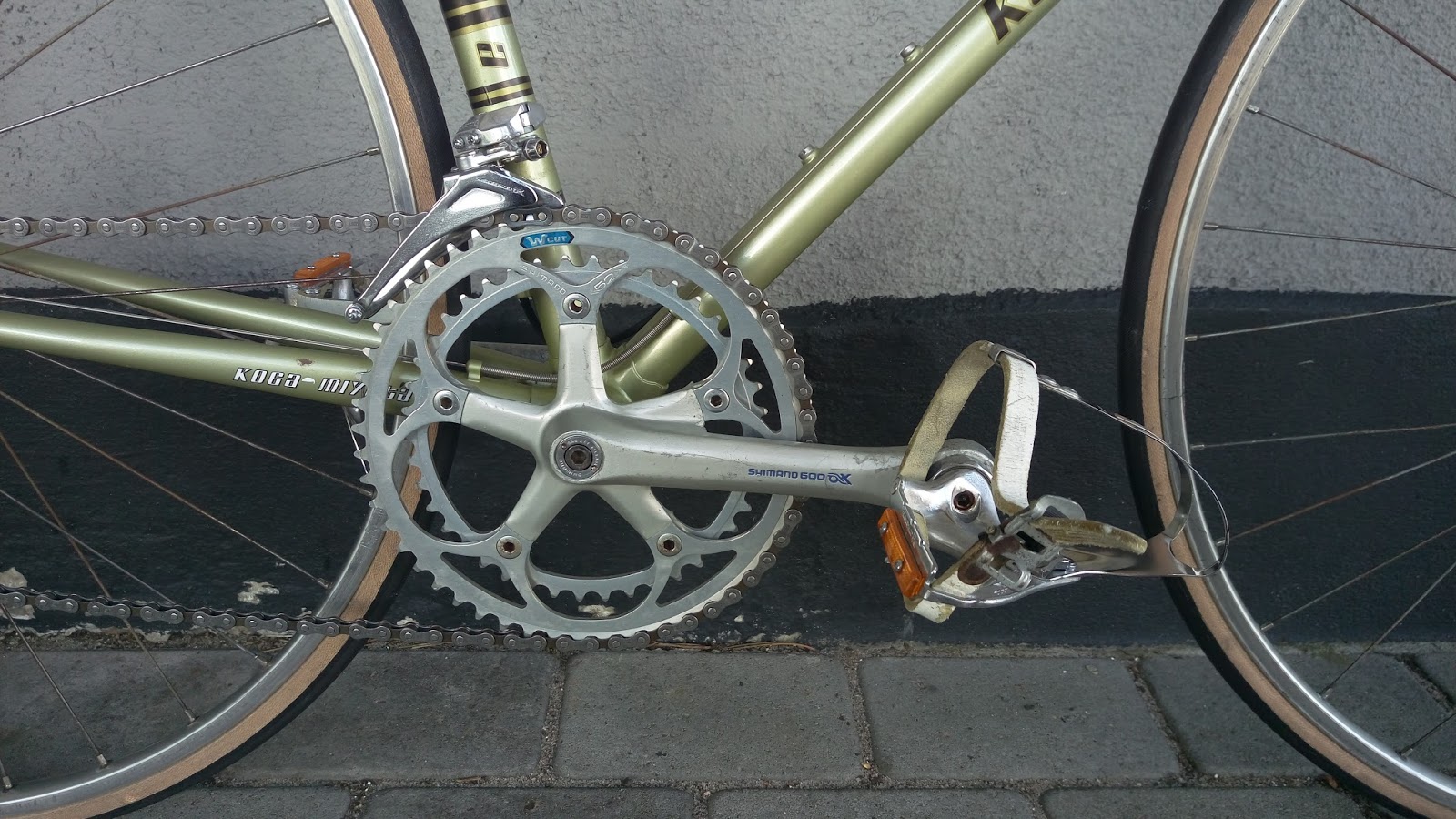

The derailleur spring hides behind a round cover and the brakes have a low profile. Dyna-Drive’s large pedal thread allowed the platform to sit around the axle rather than above it, lowering the foot and frontal area.
The system required dedicated cranks and pedals and did not become a lasting standard. It captures Shimano’s willingness to alter familiar parts in pursuit of one coherent idea.
What photographs and catalogue show
Brief specification
- Model
- Gentsracer-Aero GR-A
- Frame
- Tange Champion No. 2 / Miyata Hi-Manga
- Groupset

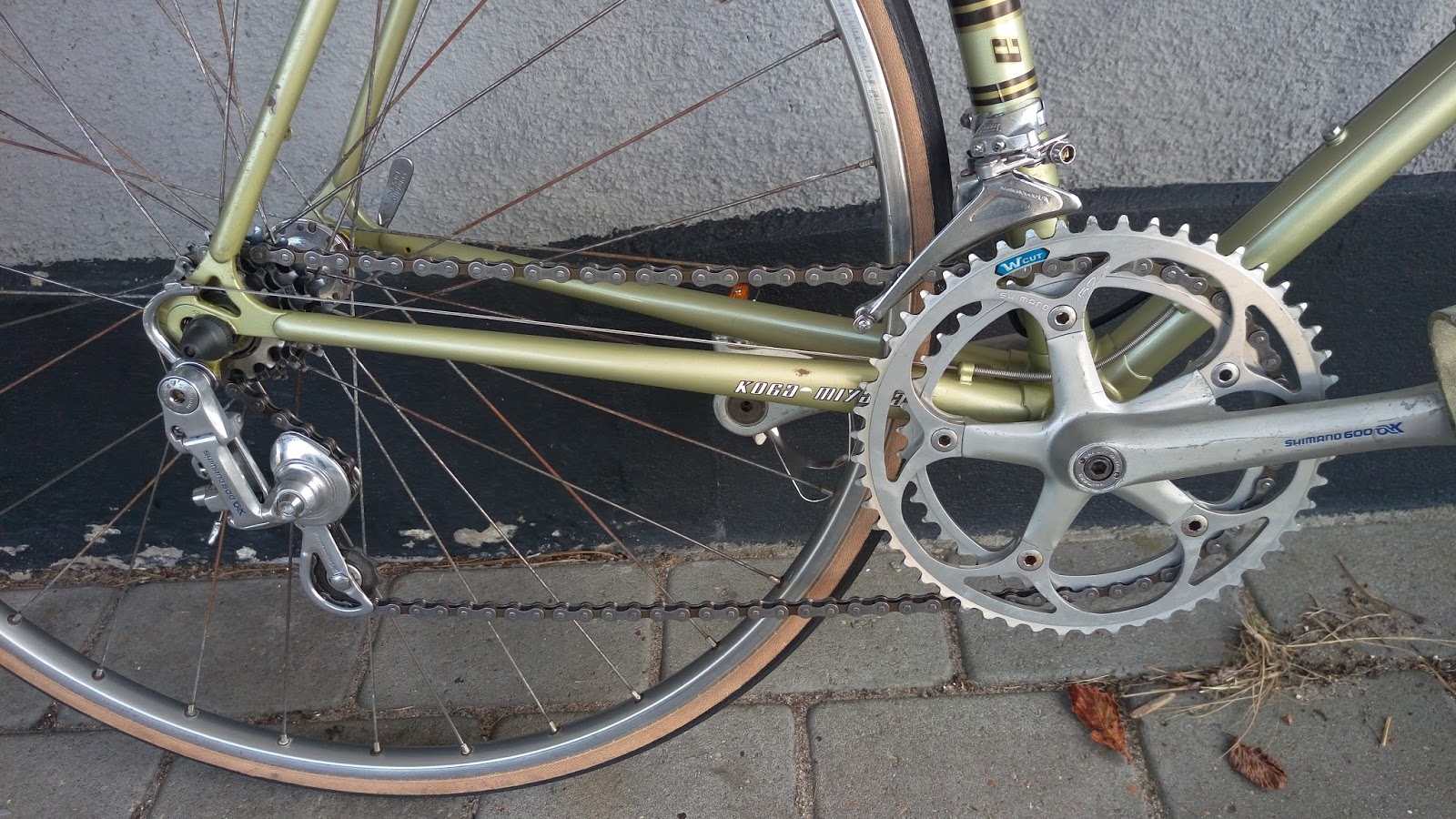

- Predominantly Shimano 600 AX
- Chainset
- 600 AX Dyna-Drive, catalogued 42/52
- Hubs
- Shimano 600 AX
- Rims
- Mavic, exact model unconfirmed
- Tyres shown
- Michelin Hi-Lite Road 700 × 20C
- Status
- Previously in the collection
Close to the catalogue — but not untouched
A coherent AX bicycle with later consumables.
The catalogue specifies Mavic rims, 32 spokes, a 42/52 chainset and six rear sprockets. The rim model cannot be read, while teeth should be counted before being described as certainly original.
The Michelin tyres are probably later replacements, and the saddle appears newer than the catalogued model. The bicycle is notably period-correct, but should not be called entirely catalogue-original.
Sources
The catalogue as a check
- Koga-Miyata Dutch catalogues, 1983 and 1984.
- Koga’s official company history.
- Shimano, 100 Products History: Shimano 600 and 600 AX.
The Gentsracer-Aero records a brief period when aerodynamics meant more than a new frame shape. Even the pedal thread had to move.
