Component archive · 1978
Shimano 600 EX
Arabesque
When Shimano turned mechanics into decoration.
Form and function
The curling patterns on derailleur, crank and levers almost belong on an Italian hand-built frame. That was the point.
Shimano launched 600 EX Arabesque in 1978 while establishing itself in a European market where Campagnolo remained strong on finer racing bicycles. The group had to work well and look beautiful.
Shimano’s product history says its patterns were designed to harmonise with the craft of elegant chromoly frames.
Japanese precision dressed for the European racing bicycle.
A small mechanical trick
The rear derailleur’s Hatch-Plate Mechanism allowed the chain and derailleur to be removed without first splitting the chain or removing a pulley bolt.
A cassette Freehub offered more sprocket combinations; period catalogues show five- and six-speed versions.
Feel at the fingertips
The rider found the gear
There were no clicks or automatic indexing. The rider moved the down-tube lever until the chain ran cleanly.
It required practice but gave a direct connection between hand, cable, derailleur and chain. SIS indexing came later in the 600 series.
Legacy
Modern components are lighter, faster and more precise — but are they more beautiful?
Arabesque became unusual because its decoration did not conceal the mechanics; it drew attention to them.
Sources and image notes

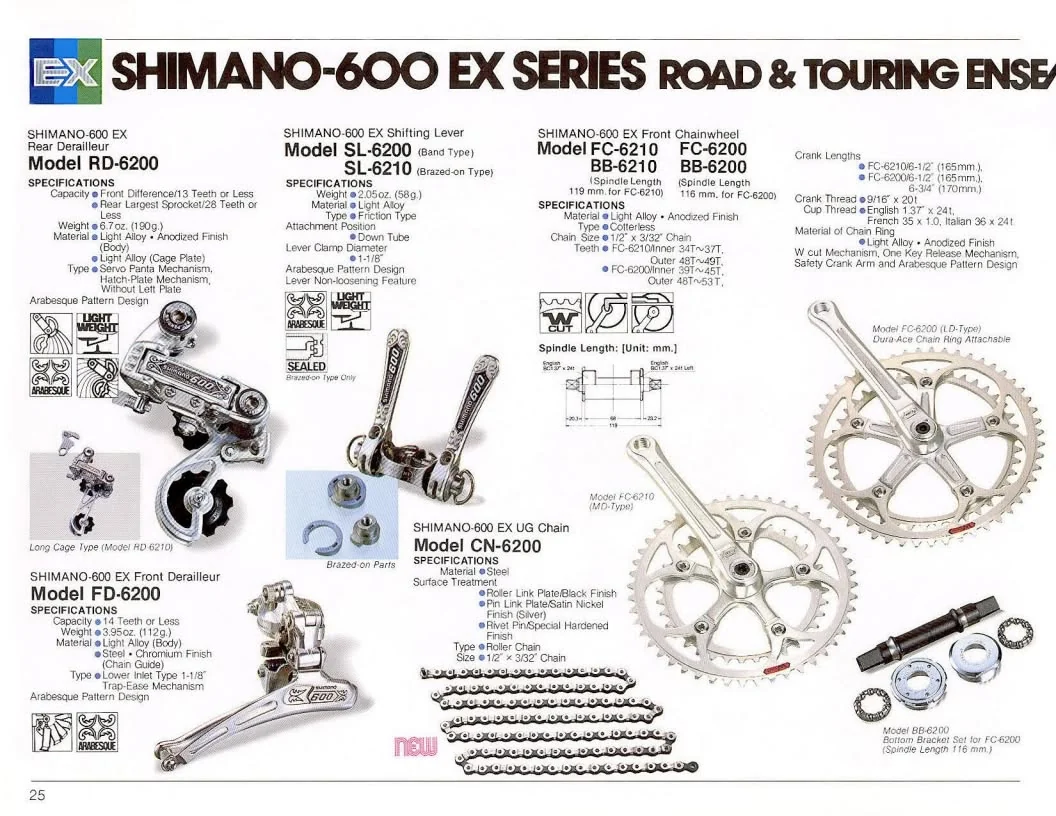

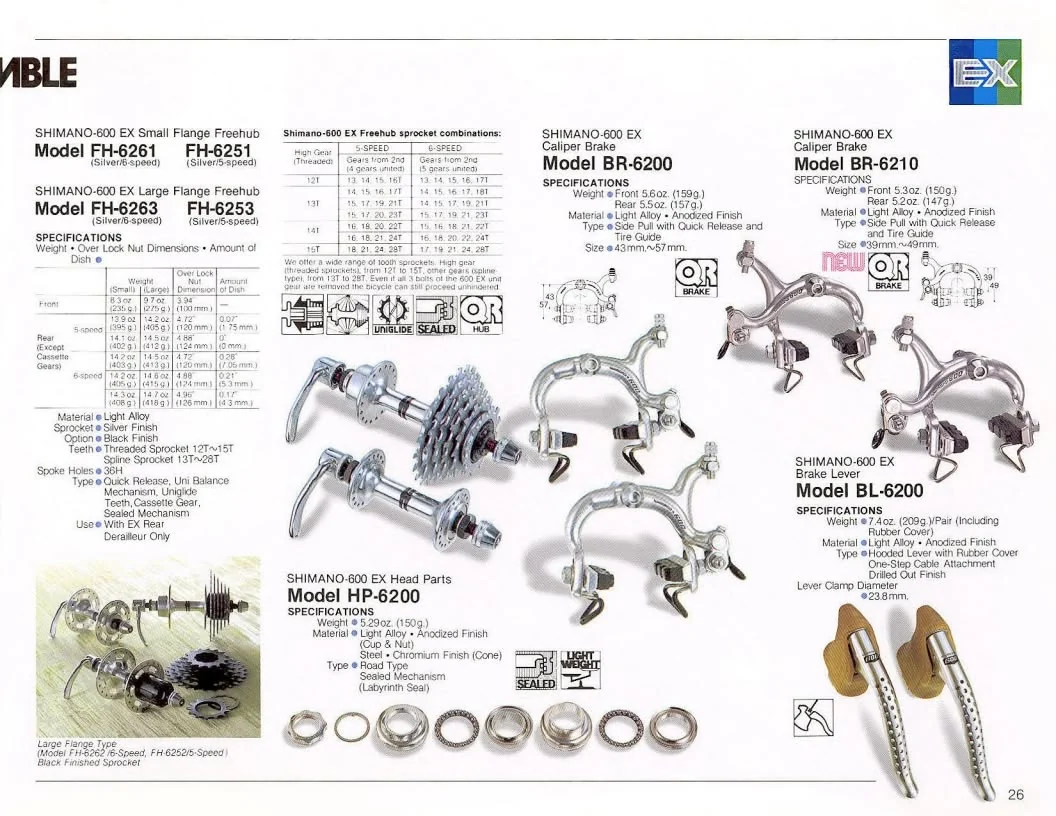

Dates, purpose and technical details were checked against Shimano’s product history, service instructions and the catalogue material shown.
